638nm Fiber Laser With Separated Driver And TEC Cooling High Quality Laser Beam For Biomedical

  • 638nm Fiber Laser With Separated Driver And TEC Cooling High Quality Laser Beam For Biomedical
  • 638nm Fiber Laser With Separated Driver And TEC Cooling High Quality Laser Beam For Biomedical
Tempat asal Cina
Nama merek AIMLASER
Sertifikasi FDA
Nomor model AM638SL30
Kuantitas min Order 1
Waktu pengiriman 15-20 hari
Syarat-syarat pembayaran , T/T, Western Union, Paypal

Hubungi saya untuk sampel dan kupon gratis.

Ada apa:0086 18588475571

Wechat wechat: 0086 18588475571

Skype: sales10@aixton.com

Jika Anda memiliki kekhawatiran, kami menyediakan bantuan online 24 jam.

x
Detail produk
Nama produk Sistem Laser Modular Panjang gelombang 638 nm
Kekuatan output ≤30mw Panjang gelombang pusat 405nm 450nm 488nm 505nm 520nm 638nm 660nm 685nm 785nm 808nm 830nm 850nm 905nm 940nm 980nm (opsional)
Stabilitas Daya 2 jam 2% Kualitas balok ≤ 1.2
kebisingan RMS < 1%
Menyoroti

638nm Fiber Laser

,

Separated Driver Fiber Laser

,

Biomedical Fiber Laser
Tinggalkan pesan
Deskripsi Produk

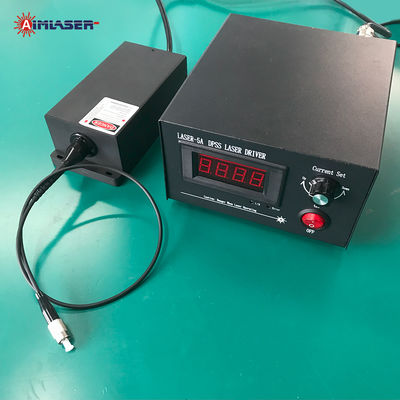

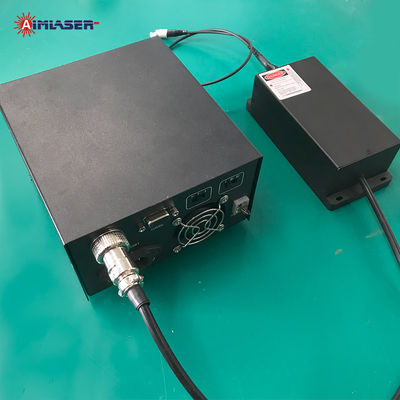

638nm Fiber Laser with Separated Driver and TEC Cooling High Quality Laser Beam For Biomedical


AM638SL30 Laser System

AIMLASER’s modular laser system features a separated laser head and driver unit, providing enhanced thermal management, installation flexibility, and long-term operational stability. Covering a wide wavelength range from 375nm to 1550nm, this system is ideal for integration into precision instruments where space, heat, and reliability are critical factors.


The use of high beam quality (M² ≤ 1.2) optics and integrated TEC temperature control ensures stable output and minimal beam distortion across a range of applications. Its compact and robust design makes it suitable for both lab research and industrial deployment, with full customization available for wavelength, power, fiber interface, and control modes.

638nm Fiber Laser With Separated Driver And TEC Cooling High Quality Laser Beam For Biomedical 0638nm Fiber Laser With Separated Driver And TEC Cooling High Quality Laser Beam For Biomedical 1

Features

  • Separated laser head and driver for flexible installation

  • M² ≤ 1.2 for high beam quality

  • Integrated TEC temperature control

  • Wide wavelength options: 375nm–1550nm

  • Customizable optical and electrical configurations


Specifications

Parameter Symbol Min Typ Max Unit
Output Power P0

Customizable mW
Power Stability (2hrs) Ps

2 %
Central Wavelength λc 405nm 450nm 488nm 505nm 520nm 638nm 660nm 685nm 785nm 808nm 830nm 850nm 905nm 940nm 980nm(Optional)  nm
Spectral Width Δλ
1 2 nm
Warm-up Time Tw

5 min
Noise (10Hz–100MHz) N

1 %
Fiber Type
Single-Mode SM Fiber
Fiber Length L
1
m
Numerical Aperture NA
0.13

Connector
FC-PC / FC-APC
Operating Voltage Vin 90 220 245 V
TTL Modulation Frequency

100
KHz
Life Time MTTF 10,000

Hrs
Operating Temperature Tstg 0 – 40

°C
Storage Temperature Topr -20 – 65

°C


Applications

  • Biomedical diagnostics and imaging

  • Fluorescence spectroscopy

  • Scientific research and laser sensing

  • Optical detection and photonic measurement systems


​Trade Terms

1) Payment: T/T, PayPal, Western Union, etc.

2) Shipment: FedEx, DHL, UPS, etc.

3) Delivery Time: 5 - 20 days.

4) Shipment Terms: FOB Xi'an, China.


Our Services

A. All products come with a one-year warranty.

B. Use original LDs from Arima, Osram, Nich, and so on to guarantee reliability.

C. Product conforms to FDA, IEC, and GB standards.

D. Strictly following ISO9001:2008 quality system.

E. Provide OEM & ODM services, support customized for your requirement.

F. Strong design and production capabilities.


638nm Fiber Laser With Separated Driver And TEC Cooling High Quality Laser Beam For Biomedical 2
