633nm 20mW Single Mode Fiber FP Laser System CW/TTL Modulation/Analog Modulation with SMA905 Connector
Hubungi saya untuk sampel dan kupon gratis.
Ada apa:0086 18588475571
Wechat wechat: 0086 18588475571
Skype: sales10@aixton.com
Jika Anda memiliki kekhawatiran, kami menyediakan bantuan online 24 jam.
xDetail produk
| Product Name | AM633MFB20X Laser System | Wavelength | 633nm ± 1nm |
|---|---|---|---|
| Output Power | ≤20mW | Laser Type | FP |
| Wavelength Temp Drift | 0.003 | Spectral Width | ≤1nm |
Deskripsi Produk

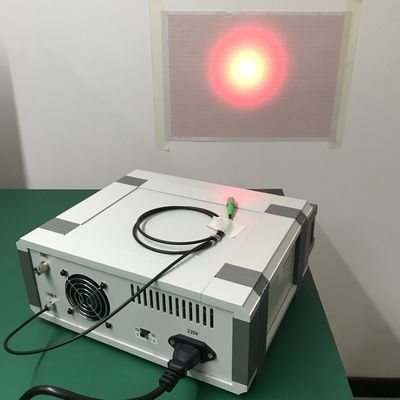

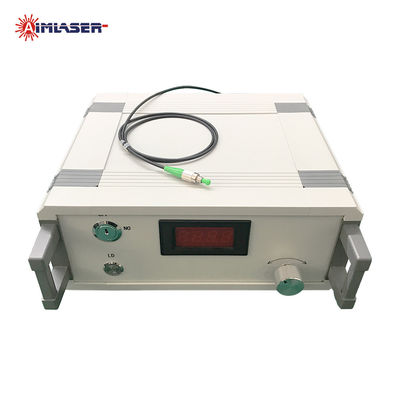

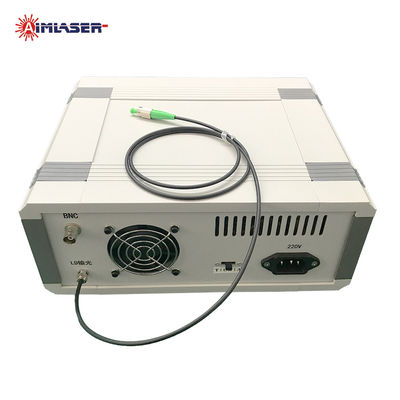

633nm 20mW Single Mode Fiber FP Laser System CW/TTL Modulation/Analog Modulation with SMA905 Connector
AM633MFB20X Laser System
The AM633MFB20X is a high-performance 633nm single-mode laser system for precision applications in biomedical imaging, metrology, and scientific research. Featuring exceptional beam quality, narrow spectral width, and high coherence, it is an ideal alternative to traditional helium-neon lasers or high-end semiconductor sources.
This system integrates a Fabry-Pérot laser diode with single transverse and longitudinal mode output, delivering stable power up to 20mW. The laser is fiber-coupled with armored protection, supporting multiple connector options (FC, SMA905, SC, ST). Air cooling and automatic current control (ACC) ensure long-term operational stability, while optional TTL and analog modulation offer flexible integration into advanced systems.
Features
-
633nm single-mode red laser output
-
Fiber-coupled with low beam divergence
-
Supports CW / TTL / Analog modulation
-
High stability (≤0.03 fluctuation)
-
Air-cooled, ACC control, long lifetime (>10,000h)
-
Compact design with optional FC/SMA905/SC/ST connectors
-
AC/DC power input available
Specifications
| Items | Specifications |
Test Conditions |
| Model Number | AM633MFB20X Laser System | |
| Wavelength | 633nm ± 1nm |
Tc = 25°C |
| Output Power | ≤ 20mW | |
| Laser Type | FP | |
| Wavelength Temp Drift | 0.003 | |
| Spectral Width | ≤ 1nm | Tc = 25°C |
| Fiber Core Diameter | 4μm | Tc = 25°C |
| Numerical Aperture | 0.13 | Tc = 25°C |
| Fiber Type | Single-mode | |
| Fiber Sheath | 3mm armored | |
| Fiber Length | 1m | |
| Fiber Connector | FC / SMA905 / SC / ST (optional) | |
| Operating Mode |
CW (Standard) | |
| TTL Modulation: 0~20KHz | Tc = 25±3°C | |
| Analog Modulation: 0~5V | ||
| Performance Stability | ≤0.03 (2 hours continuous operation) | |
| Cooling Method | Air-cooled | |
| Control Mode | Automatic Current Control (ACC) | |
| Lifetime | 10,000 hours | |
| Operating Temperature | +10°C⁓+40°C | |
| Storage Temperature | -20°C⁓+60°C | |
| TEC Temperature Stability | ±0.05% | |
| Warm-up Time | < 5 minutes | |
| AC (Standard) | 90V～240VAC,50～60Hz | |
| DC (Optional) | +12V | |
| Type | A-1 | |
| Dimensions | 265mm × 240mm × 112mm | |
| Warranty | 1 Year |
Applications
- Biomedical imaging, diagnostics, and therapy
-
Ophthalmic diagnostics and treatment
-
Precision material processing and micromachining
-
Display, illumination, and projection
-
Cold atom physics, interferometry, Raman spectroscopy
Trade Terms
1) Payment: T/T, PayPal, Western Union, etc.
2) Shipment: FedEx, DHL, UPS, etc.
3) Delivery Time: 5 - 20 days.
4) Shipment Terms: FOB Xi'an, China.
Our Services
A. All products come with a one-year warranty.
B. Use original LDs from Arima, Osram, Nich, and so on to guarantee reliability.
C. Product conforms to FDA, IEC, and GB standards.
D. Strictly following ISO9001:2008 quality system.
E. Provide OEM & ODM services, support customized for your requirement.
F. Strong design and production capabilities.
