xDetail produk
| Product Name | 785nm Narrow Linewidth Laser System | Wavelength | 785nm ± 1nm |
|---|---|---|---|
| Output Power | 500mW | Linewidth | ≤0.1nm |
| Power Stability(4Hours, ±3℃) | 2% | Fiber Type | 105um |
| Menyoroti | 785nm fiber-coupled Raman spectroscopy laser,500mW narrow linewidth fiber laser,high stability fiber laser module |
||
Deskripsi Produk

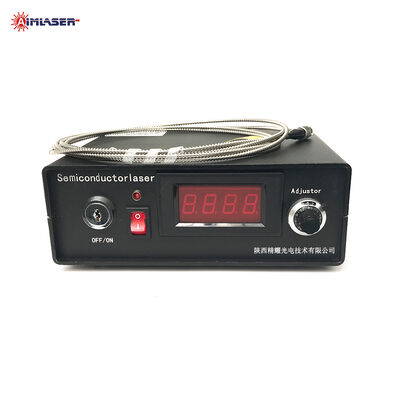

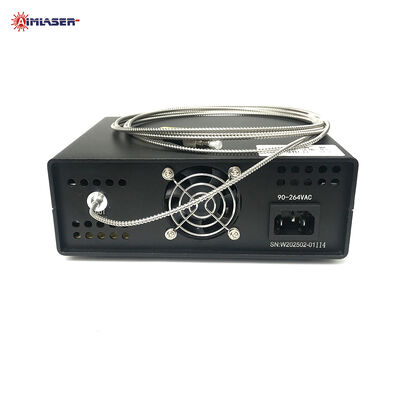

785nm 500mW 0.1nm Narrow Linewidth High Power Stability Fiber-Coupled Laser for Raman Spectroscopy
AM785MF500 Laser System
AIMLASER offers 785nm, 500mW, 0.1nm ultra-narrow linewidth fiber-coupled laser system for Raman Spectroscopy. This system features high power stability (±2%), low RMS noise (≤0.5%), and comes with 105 µm or 200 µm fiber-coupled collimated output.
Key characteristics:
-
High power stability with broadband low optical noise
-
Excellent beam pointing stability
-
Flexible driver control modes (TTL or analog modulation supported)
-
Short preheating time and low heat generation
-
Compact size with low power consumption
-
Optional collimator for focusing or collimating the laser beam
-
Equipped with TEC temperature control for long-term high stability operation
-
Fiber connectors available: FC/PC, FC/APC, SMA905
In addition to 785 nm, AIMLASER provides 375 nm, 532 nm, 633 nm, 1064 nm lasers with various power options for Raman Spectroscopy, as well as other industrial, scientific, and medical applications.
Specifications
| Parameter | Specifications | ||||
| Wavelength | 785±1nm | ||||
| Output Power | 500mW | ||||
| Fiber Core Diameter | 105um | ||||
| Power Stability(4hrs) | 2% | ||||
| RMS Noise | 0.2% | ||||
| Peak Value Noise | 0.5% | ||||
| Collimator Beam Size | Ø1mm@10mm | ||||
| Connector | SMA905 | ||||
| Fiber Length | 1m | ||||
| Fiber Sheath | 2mm Armored | ||||
| Operating Mode | CW, TTL/Analogue Modulation | ||||
| Power Supply | 220V AC | ||||
| TTL modulation | 30KHz | ||||
| Cooling | TEC | ||||
| Operating Temperature | 25℃ | ||||
| Warm-up time | 5min | ||||
| Housing Material | Anodized Aluminum | ||||
| Size | 150x60x50mm | ||||
| Life Span | 10,000Hrs | ||||
| Warranty | 1 Year | ||||
Applications
- Raman spectroscopy and molecular analysis
- Pharmaceutical and chemical identification
- Biological and biomedical Raman imaging
- Material characterization and quality inspection
- Semiconductor and nanomaterial analysis
- Food safety and environmental monitoring
- Portable and handheld Raman spectrometer systems
Trade Terms
1) Payment: T/T, PayPal, etc.
2) Shipment: FedEx, DHL, UPS, etc.
3) Delivery Time: 5 - 20 days.
4) Shipment Terms: FOB Xi'an, China.
Our Services
A. All products come with a one-year warranty.
B. Use original LDs from Arima, Osram, Nich, and so on to guarantee reliability.
C. Product conforms to FDA, IEC, and GB standards.
D. Strictly following ISO9001:2008 quality system.
E. Provide OEM & ODM services, support customized for your requirements.
F. Strong design and production capabilities.
