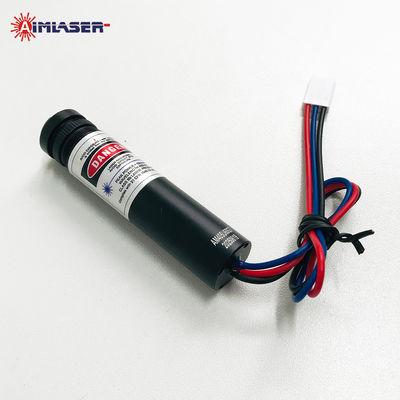

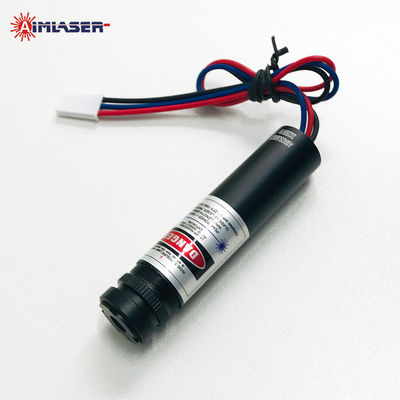

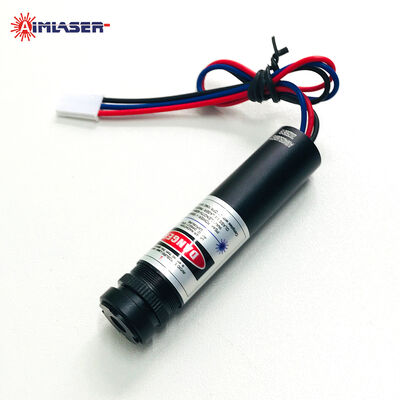

Narrow Uniform Line Laser Module With Powell Lens TTL / Analog / PWM Modulation 20um 50um 200um
Hubungi saya untuk sampel dan kupon gratis.
Ada apa:0086 18588475571
Wechat wechat: 0086 18588475571
Skype: sales10@aixton.com
Jika Anda memiliki kekhawatiran, kami menyediakan bantuan online 24 jam.
xDetail produk
| Nama produk | Modul Laser Garis Seragam dengan Lensa Powell | Panjang gelombang | 405nm 450nm 525nm 635nm 650nm 780nm 850nm |
|---|---|---|---|
| Lebar Garis | ≤20um@60mm, ≤30um@80mm, ≤60um@150mm, ≤100um@300mm | sudut kipas | 10°~120° (Kustom) |
| Tegangan operasi | 3-24V DC (Kustom) | materi kasus | Isolasi Aluminium Hitam Anodized |
| Umurnya | 10.000 jam | ||
| Menyoroti | TTL Analog Uniform Line Laser Module,Powell Lens Uniform Line Laser Module,PWM Uniform Line Laser Module |
||
Deskripsi Produk
Narrow Uniform Line Laser Module with Powell Lens TTL/Analog/PWM Modulation 20um 50um 200um
Product Description
AIMLASER’s Powell Lens Line Laser Module is engineered for high-uniformity, narrow-linewidth projection in industrial and robotic vision applications. Unlike conventional cylindrical lens lasers that produce a Gaussian-distributed laser line, this module integrates a precision Powell lens to transform the beam into a uniform-intensity, fan-shaped laser line with line widths ranging from 20μm to 200μm.
The laser ensures uniform beam intensity distribution along the full length of the line, minimizing hotspots and edge dimming—making it ideal for applications requiring consistent illumination and precise edge detection. Available wavelengths: 405nm, 450nm, 488nm, 505nm, 520nm, 638nm, 660nm, 685nm, 785nm, 808nm, 830nm, and 850nm. It supports CW, TTL modulation, and Analog modulation, providing compatibility with diverse control systems.
The Powell lens well-distributed line laser delivers excellent beam quality, high stability, and consistent brightness across the full length of the laser line—ideal for structured light scanning, robotic alignment, automated optical inspection (AOI), and 3D vision.
Specifications
|
ITEMS |
PARAMETERS |
|
Model Number |
Powell Lens Well Distributed Line Laser Diode Module |
|
Wavelength |
405nm, 450nm, 488nm, 505nm, 520nm, 638nm, 660nm, 685nm, 785nm, 808nm, 830nm, 850nm, and 940nm |
|
Output Power |
5mW~10W |
| Output Aperture | Φ5.0mm |
|
Line Width |
≤20um@60mm, ≤30um@80mm, ≤50um@150mm, ≤100um@300mm |
|
Fan Angle |
10°~120° |
| Input Voltage | 3~24.0VDC |
| Working Current | <500mA |
| Driver Mode | CW or Pulse(TTL, Analog Modulation, Digital Modulation) |
| Dimensions | Φ12x35mm, Φ12x45mm, Φ16x50mm, Φ16x70mm |
| Divergence | 0.2~0.8mrad |
|
CDRH Class |
Class I II IIIa IIIb |
|
Circuit control |
Auto Constanct Current (ACC) |
|
Circuit Protection |
Static, Surge, and Reverse Polarity Protected |
|
Working Temperature |
-10℃ to 50℃ |
|
Storage Temperature |
-40℃ to 80℃ |
|
Optics |
Powell Lens |
|
Material |
Aluminum Black Anodized (Insulation) |
|
Life Time |
≥10,000Hrs |
Features
-
Uniform laser line via Powell lens (non-Gaussian profile)
-
Narrow line width (20μm–200μm), customizable
-
Uniform beam intensity across entire line
-
Wavelengths: 405nm ~ 1550nm
-
Supports TTL, Analog, PWM modulation
-
High stability and low noise
-
Compact design for easy integration
Applications
The Powell lens uniform distribution line laser diode modules are used in:
-
Robotic vision and intelligent automation
-
Structured light scanning and 3D profiling
-
Automated optical inspection (AOI)
-
Surface defect detection
-
Precision alignment and industrial metrology
Trade Terms
1) Payment: T/T, PayPal, Western Union, etc.
2) Shipment: FedEx, DHL, UPS etc.
3) Delivery Time: 5 - 20 days.
4) Shipment Terms: FOB Xi'an China
Why Choose Us
A. Over 20 years laser experience.
B. Large-scaled facility 4,500sq.m2 and over 180 professional staffs.
C. Use original LDs from Arima, Osram, Nicha and so on to guarantee reliability.
D. Strictly following ISO9001:2008 quality system.
E. Product conforms to FDA, IEC and GB standard.
F. Strong design and production capabilities, partners of famous brands.
