High-Stability 505nm 30mW Laser System with TTL Modulation and Adjustable Power Single-Mode Fiber Output
Hubungi saya untuk sampel dan kupon gratis.
Ada apa:0086 18588475571
Wechat wechat: 0086 18588475571
Skype: sales10@aixton.com
Jika Anda memiliki kekhawatiran, kami menyediakan bantuan online 24 jam.
xDetail produk
| Nama produk | Sistem laser stabilitas tinggi AM505HS30S | Panjang gelombang | 505nm |
|---|---|---|---|
| Kekuatan output | ≤30mw | Pola spasial | Tem₀₀ |
| Kualitas balok | ≤ 1.1 | kebisingan RMS | < 0,2% |
| Stabilitas daya jangka panjang (8 jam, ± 3 ° C) | ≤ 0,5% | ||
| Menyoroti | Single Mode 30mW Laser System,TTL Modulation 505nm Laser System |
||
Deskripsi Produk
505nm 30mW Laser System with TTL Modulation and Adjustable Power Single-Mode Fiber Output

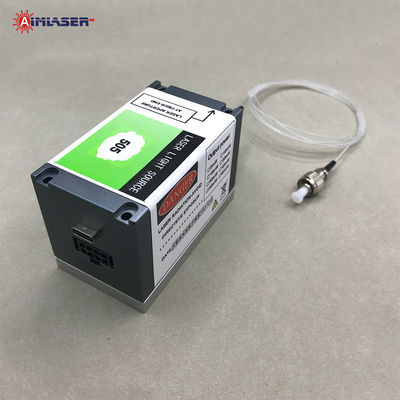

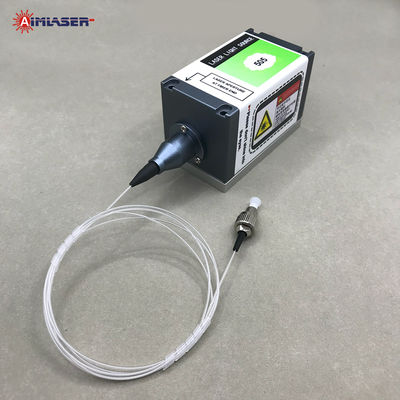

AM505HS30S Laser System
AIMLASER’s 505nm laser system delivers outstanding beam quality, low RMS noise, and excellent long-term power stability—meeting the stringent requirements of the biomedical and analytical fields. Designed with precision optical glass and a custom-engineered driver circuit, the module ensures clean output profiles, extended lifespan, and reliable performance in demanding environments.
The system features TTL modulation, adjustable output power, and single-mode fiber coupling, making it easy to integrate into laboratory instruments and OEM systems. Its compact, plug-and-play design supports a variety of configurations with custom wavelength, power, and fiber options available upon request.
Features
- High stability and low noise output
- Adjustable power with TTL modulation control
- Excellent beam quality via precision glass optics
- Single-mode fiber output (customizable options available)
- Compact and robust design for integration
- Plug-and-play operation with long service life
Specifications
| Parameter | Value |
| Spatial Pattern | TEM₀₀ |
| Beam Quality | ≤ 1.1 |
| Beam Asymmetry | ≤ 0:1.2 |
| RMS Noise | < 0.2% |
| Peak Value Noise | < 0.5% |
| Long-Term Power Stability (8h, ±3°C) | ≤ 0.5% |
| Operating Voltage | DC 5 V / 3 A |
| Connector | FC/PC, FC/APC, SMA905 (optional) |
| Fiber Length | 1 m (customizable) |
| Polarization Ratio | 50:1 (vertical) |
| Laser Drive Mode | CW, analog modulation, TTL modulation |
| Laser Safety Level | Class 3B |
| ESD Protection | Level 4 |
| Bottom Plate Temperature | 50 °C |
| Case Dimensions | 70 × 40 × 45 mm |
| Operating Temperature | 10 °C to 40 °C |
| Storage Temperature | -20 °C to 60 °C |
| Lifetime | 10,000 hours |
Applications
-
Biomedical diagnostics and fluorescence detection
-
Medical imaging systems
-
Flow cytometry
-
Confocal microscopy
-
Raman spectroscopy
-
DNA sequencing and genetic analysis
Trade Terms
1) Payment: T/T, PayPal, Western Union, etc.
2) Shipment: FedEx, DHL, UPS, etc.
3) Delivery Time: 5 - 20 days.
4) Shipment Terms: FOB Xi'an, China.
Our Services
A. All products come with a one-year warranty.
B. Use original LDs from Arima, Osram, Nich, and so on to guarantee reliability.
C. Product conforms to FDA, IEC, and GB standards.
D. Strictly following ISO9001:2008 quality system.
E. Provide OEM & ODM services, support customized for your requirement.
F. Strong design and production capabilities.
