1260-1620nm O/C/L SM PM1550 1.8 mm(OD) Fiber Collimator with FC/APC for Optical Communication
Hubungi saya untuk sampel dan kupon gratis.
Ada apa:0086 18588475571
Wechat wechat: 0086 18588475571
Skype: sales10@aixton.com
Jika Anda memiliki kekhawatiran, kami menyediakan bantuan online 24 jam.
xDetail produk
| Nama produk | Kolimator Optik Serat | Panjang gelombang | 1260-1620nm |
|---|---|---|---|
| Jenis serat | PM1550 Panda Fiber | Jarak Kerja | 5/10/20/50/60mm |
| Ukuran balok | ≤0.5mm | ||
| Menyoroti | PM1550 Fiber Collimator,1620nm Fiber Collimator,Optical Communication Fiber Collimator |
||
Deskripsi Produk

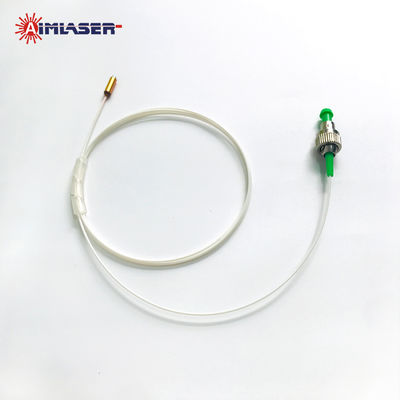

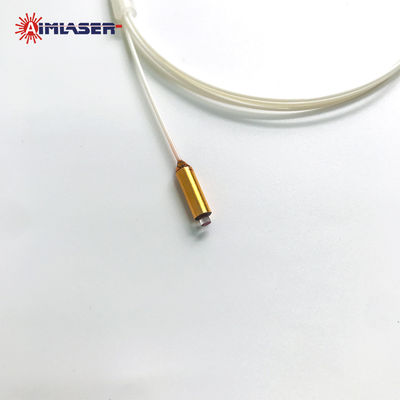

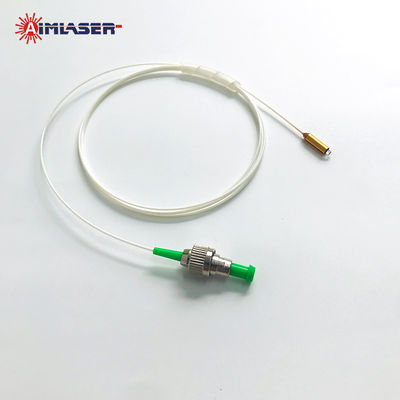

1260-1620nm O/C/L SM PM1550 1.8 mm(OD) Fiber Collimator with FC/APC for Optical Communication
Fiber Collimator
AIMLASER’s 1260–1620nm SM PM Fiber Collimator is designed for precise beam collimation in polarization-sensitive optical systems. Built with PM1550 Panda fiber and a compact 1.8mm OD lens package, it delivers low insertion loss, high extinction ratio, and tight beam alignment with an extremely small beam size of ≤0.5mm—ideal for O, C, and L-band fiber optic communication, including commonly used wavelengths such as 1310nm and 1550nm.
This fiber collimator supports customizable working distances from 5mm to 60mm and features an FC/APC connector for low back reflection, making it suitable for coherent and high-speed optical systems. With stable polarization performance, compact integration, and long operational life, it’s well-suited for applications in optical sensing, interferometry, and advanced photonics research.
Whether used in DWDM systems, optical coherence tomography, or interferometric sensors, this fiber collimator enables high-efficiency light transmission and excellent alignment precision—critical for today's high-speed, high-fidelity optical networks.
Features
-
Compact 1.8mm OD lens design for space-constrained systems
-
Extremely small beam size (≤0.5mm) for precise optical alignment
-
Low insertion loss (typ. 0.2dB), high extinction ratio (≥23dB)
-
Stable polarization-maintaining performance with PM1550 Panda fiber
-
Customizable working distances from 5mm to 60mm
-
FC/APC connector ensures low back reflection
-
Ideal for O/C/L band wavelengths, including 1310nm & 1550nm
Specifications
| Items | Specifications |
| Model Number | Single Mode Polarzation Maintaining Fiber Collimator |
| Operating Wavelength | 1260-1620nm |
| Working Distance | 5,10,20,50,60mm |
| Beam Size | ≤0.5mm |
| Typ Insertion Loss | 0.2dB |
| Insertion Loss | ≤0.3dB |
| Extinction Ratio | ≥23dB |
| Return Loss | ≤500mW |
| Fiber Type | PM1550 Panda Fiber |
| Package Dimensions | 1.8mm(OD) Lens |
| Fiber Length | 1m |
| Numerical Aperture | 0.22 N.A. |
| Connector | FC/APC |
| Life Span | ≥8,000Hrs |
Applications
-
Coherent fiber optic communication systems
-
Polarization-sensitive optical sensing
-
Fiber-based interferometry and metrology
-
Quantum optics and photonics research
-
Laboratory optical alignment and testing setups
Trade Terms
1) Payment: T/T, PayPal, Western Union, etc.
2) Shipment: FedEx, DHL, UPS, etc.
3) Delivery Time: 5 - 20 days.
4) Shipment Terms: FOB Xi'an, China.
Our Services
A. All products come with a one-year warranty.
B. Use original LDs from Arima, Osram, Nich, and so on to guarantee reliability.
C. Product conforms to FDA, IEC, and GB standards.
D. Strictly following ISO9001:2008 quality system.
E. Provide OEM & ODM services, support customized for your requirement.
F. Strong design and production capabilities.
