405nm 450nm 523nm 638nm 685nm 20mW Multi-Wavelengths Single-Channel Output Single / Multi Mode Fiber Coupled Laser System
Hubungi saya untuk sampel dan kupon gratis.
Ada apa:0086 18588475571
Wechat wechat: 0086 18588475571
Skype: sales10@aixton.com
Jika Anda memiliki kekhawatiran, kami menyediakan bantuan online 24 jam.
xDetail produk
| Product Name | Five Wavelength Laser System | Wavelength | 405nm, 450nm, 488nm, 505nm, 520nm, 532nm, 638nm, 660nm, 685nm, 785nm, 808nm, 830nm, 850nm, 905nm, 940nm, 980nm( can choose a combination of two, three and four wavelength) |
|---|---|---|---|
| CW Output Power | Depends on the wavelength | Fiber Core Diameter | 3.5um, 4um, 5um, 25um, 50um, 62.5um, 105um, 200um, 400um, 600um, 800um optional |
| Long time power stability | 3%/1% | Warranty | 1 Year |
Deskripsi Produk

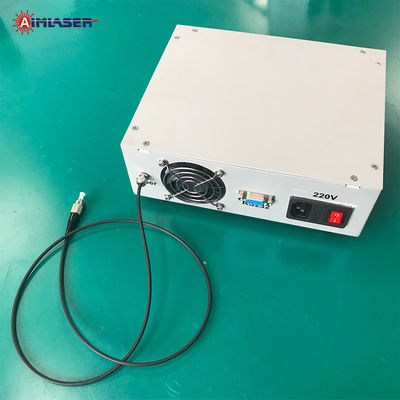

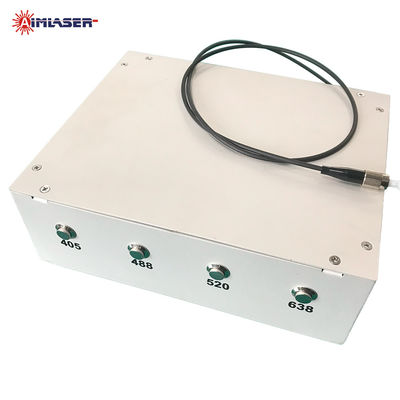

405nm 450nm 523nm 638nm 685nm 20mW Multi-Wavelengths Single-Channel Output Single / Multi Mode Fiber Coupled Laser System
Multi-Wavelength Single-Channel Fiber Laser System
Developed and manufactured by AIMLASER, this high-stability multi-wavelength single-channel laser system offers outstanding performance and proven reliability. It supports wavelength combinations from 375nm to 1550nm, including dual-, triple-, quad-, and five-wavelength configurations based on user requirements.
Each wavelength is independently switchable and equipped with its own power adjustment knob. The system is compatible with both single-mode and multi-mode fiber outputs. By adjusting the output of different lasers, users can combine the wavelengths or colors they need. Customizable parameters include output power, fiber core size, fiber length, and connector type (e.g., FC, SMA). Optional features include TEC temperature control and air cooling for enhanced stability.
Paired with a dedicated modulation module and high-precision driver, this system is easy to operate, maintenance-free, and built for long service life. Custom solutions are available to meet application-specific wavelength or color mixing needs.
Features
- Multiple wavelength and power level options.
- Shared optical output port.
- Serial interface with software control for on/off switching and power adjustment of each channel.
- High stability and excellent signal-to-noise ratio.
- Fully customizable to meet specific requirements.
Specifications
| Item | Specifications |
| Center Wavelength | 405, 450, 488, 505, 520, 532, 638, 660, 685, 785, 808, 830, 850, 905, 940, 980( can choose a combination of two, three, four, and five wavelengths) |
| Output Power | Depends on the wavelengths |
| Fiber Core Diameter | 3.5, 4, 5, 25, 50, 62.5, 105, 200, 400, 600, 800 optional |
| Long time power stability | 3%/1% |
| RMS Noise | 0.03 |
| Peak Value Noise | 0.01 |
| Connector | FC/SMA905/SC/ST |
| Fiber Length | 1m(customizable) |
| Operating Mode | CW/RS232 software control |
| Power Supply | AC220V/DC12V |
| TTL modulation | 20K |
| Operating Temperature | 25℃ |
| Cooling method | Air Cooling/TEC |
| Warm-up time | 5min |
| Housing Material | Anodized Aluminum |
| Life Span | ≥10,000Hrs |
| Remark | External computer serial port and software can control the switch and power of each laser |
Applications
-
Biomedical imaging and diagnostics
-
Scientific research and laboratory experiments
-
White light generation and display
-
Laser spectroscopy
-
Full-color holography
-
Fluorescence excitation
-
Optical coherence tomography (OCT)
-
Color mixing and lighting systems
-
Environmental sensing and detection
-
Interference and metrology systems
-
Optical communication testing
Trade Terms
1) Payment: T/T, PayPal, Western Union, etc.
2) Shipment: FedEx, DHL, UPS, etc.
3) Delivery Time: 5 - 20 days.
4) Shipment Terms: FOB Xi'an, China.
Our Services
A. All products come with a one-year warranty.
B. Use original LDs from Arima, Osram, Nich, and so on to guarantee reliability.
C. Product conforms to FDA, IEC, and GB standards.
D. Strictly following ISO9001:2008 quality system.
E. Provide OEM & ODM services, support customized for your requirement.
F. Strong design and production capabilities.
